    50KG Load Adhesion Testing Machine Cell Uncoil Test Machine Tape Yarn Unwinding Test

    Ask Lasest Price
    Brand Name : PERFECT
    Model Number : PT-6088B
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 10-15 working days after confirming order
    • Product Details
    • Company Profile

    50KG Load Adhesion Testing Machine Cell Uncoil Test Machine Tape Yarn Unwinding Test

    50KG Load Cell Uncoil Test Machine Adhesion Tester Tape Yarn Unwinding Test

    PT-6088B High Speed Unwind Tester.pdf


    50KG Load Cell Uncoil Test Machine Applacation :


    With high speed to peeled off entire roll adhesive tape, to observed the strength change and analysis size of peel force during entire roll adhesive tape stripping process, as adhesive tape at high speed unwound provide references when in used


    Tape Yarn Unwinding Test Machine Parameters :


    Product Name50KG Load Cell Uncoil Test Machine Adhesion Tester Tape Yarn Unwinding Test
    Model NumberPT-6088
    Specimen SizeWithin reel diameter 75mm and width 75mm (reel can be customized), the max outer diameter of 300mm.
    Load Cell10kg, 20kg, 50kg option any one.
    Load Cell Accuracy±0.1%
    Force Resolution1/300,000
    Test SoftwareA99 special software for unwind test, automatic recording of the time unwound 25%, 50% and 75% force value.
    Unwinding Speed Range0 ~ 122m/min±3 m/min (can be set)
    Force Unit SwitchAll units can be arbitrarily selected; you can also define you own units. After test is completed also can be any conversion.
    DimensionAbout 500mm*400mm*300mm (W*D*H)
    WeightAbout 27kg (not include packing)
    MotorStepper Motor
    Power1/2PH, AC220V (or 110V), 5A

    Meet Standards : PSTC-13 , ASTM D1000

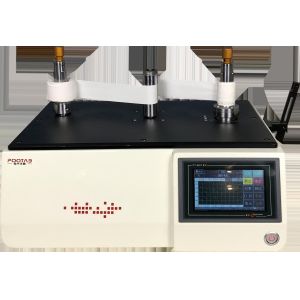

    Refer Picture :
    50KG Load Adhesion Testing Machine Cell Uncoil Test Machine Tape Yarn Unwinding Test
