    Push Pull Force Testing Machine Electronic Double Columns With Ball Screw

    Ask Lasest Price
    Brand Name : PERFECT
    Model Number : PT-1161
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 15-20 work days after deposit
    • Product Details
    • Company Profile

    Push Pull Force Testing Machine Electronic Double Columns With Ball Screw

    Electronic Double Columns Press Pull Force Test Machine With Ball Screw


    Press Pull Force Test Machine Application:


    10KN Electronic Testing Machinein the industries of rubber plastic, paper products, printing and packaging, adhesive tape, cases, handbags, textile, pharmaceutical, cosmetic, food, electronic wire, etc.. Can the physical properties of the test all kinds of materials and finished products, semi-finished products, to buy all the different fixture do tensile, compressive strength, to pull, pressure, bending, tear, peel, adhesive force and the shear test.


    Press Pull Force Test Machine Parameters:


    Product NameElectronic Double Columns Press Pull Force Test Machine With Ball Screw
    ModelPT-1161
    Capacity selection5,10,20,50,100,200,500,1000kg choose one
    MonitorPower and extended display
    Accuracy of measurementBetter than±1.0%
    Force resolution1/10,000
    Effective range of measurement1~100%F.S
    Deformation display accuracyBetter than±1.0%
    Test speed range5~500mm/min,can be arbitrarily set
    Test maximum strokeMaximum 1000mm, no fixture
    Effective test spaceAbout 400mm,After or before ∝
    Power unit switchkgf,gf ,N,kN,Ibf
    Stress unit switchMPa,kPa,kgf/cm2,Ibf/in2
    Deformation unit switchmmm,cm,etc
    Stop modeUpper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
    Point methodManual and pre - set points (20 points) function in the test process
    Standard configurationStandard fixture 1 pay, equipment power supply line 1, CD disc operation manual 1, product certification 1, product warranty card 1
    Optional configurationPT-211 two point extension of the fixture, a variety of test fixture
    Machine sizeabout 98×51×160cm(W×D×H)
    Machine weightabout 170kg
    PowerDC motor
    Power Supply1PH,AC220V,50/60Hz,10A or specified

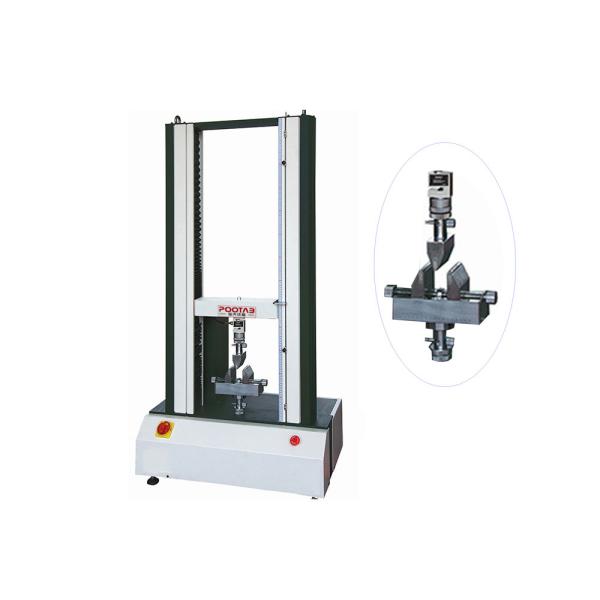

    Image:


    Push Pull Force Testing Machine Electronic Double Columns With Ball Screw
